Description

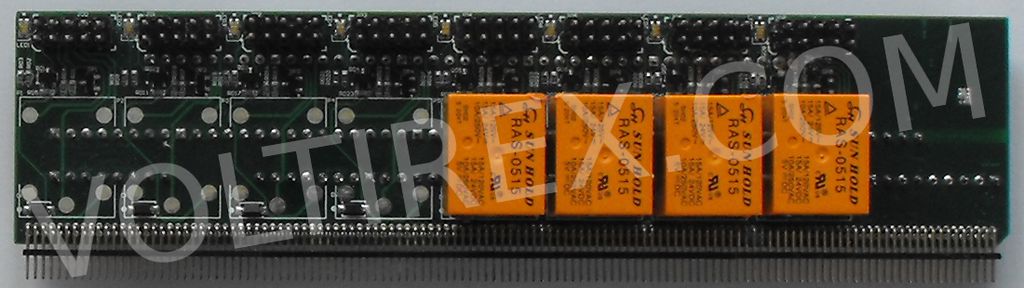

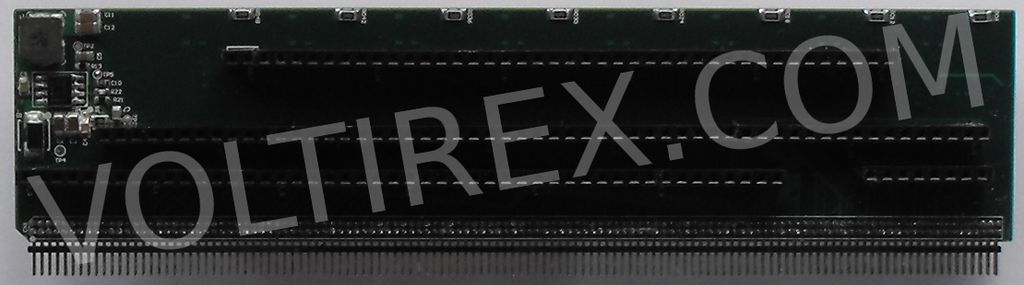

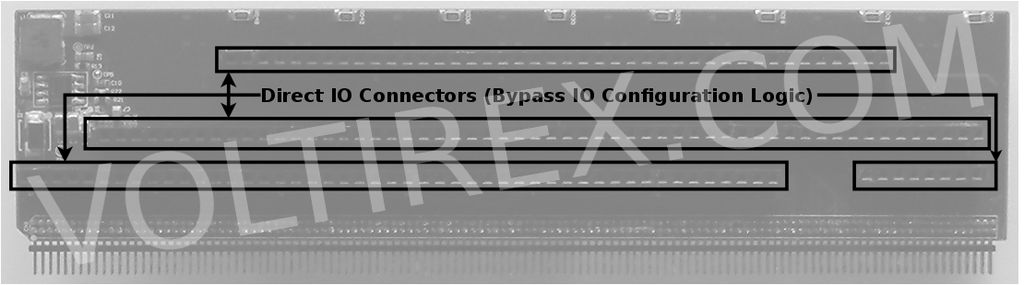

This PCB exports the main bus IO signals in various configurations. It also supplies 3.3V and 5V to the connectors on the back - for connecting additional boards. The IO signals can control the SPDT relay in open drain or open drain with current limit resistor configurations.

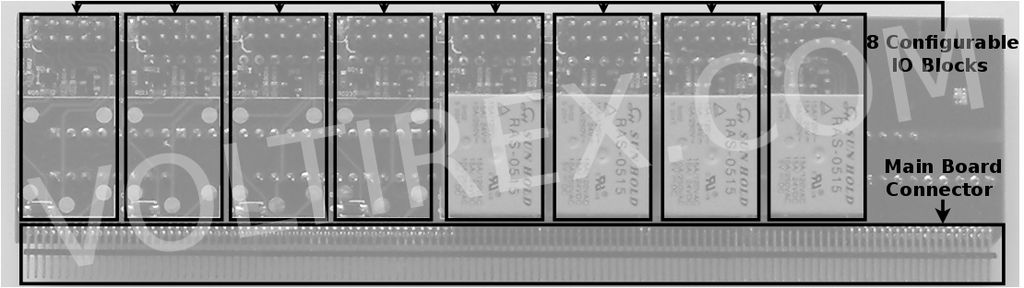

Main bus IO signal configurations:

• Direct IO
• IO with current limit resistor and LED status
• Open drain IO
• Open drain IO with current limit resistor

Relay rated limits:

• 10A/250V
• 15A/120V
• 15A/24V

The board requires a 5V/0.5A power supply.

Pricing

Price: 390BGN

Ordering

Refer to the ordering section on information about orders.
